This example shows a free-standing, rotating table pallet stretch wrapper where the pallet load is placed on the turntable by truck. An operator attaches film from the reel to the base of the load and after wrapping cuts the film and tucks the tail into the load or pallet.
This type of semi-automatic machine is very widely used for low to moderate throughputs and is extremely flexible in terms of application and location. Fully automatic versions have conveyors for infeed and discharge of loads and automated attachment, cutting and sealing of film.
Above - Operation of a typical rotating table pallet stretchwrapper

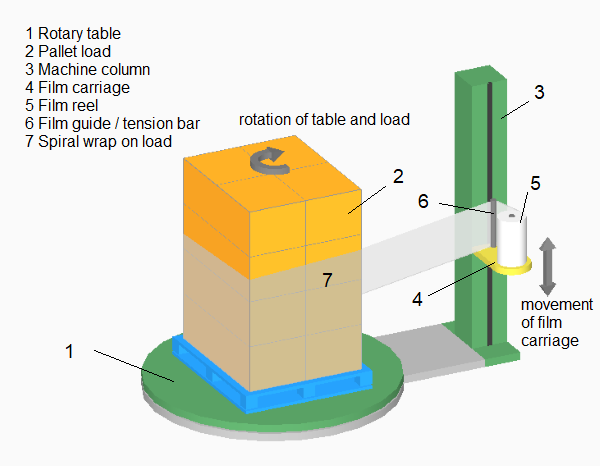

Below - Working parts of a typical rotating table pallet stretchwrapper
