A sweep depalletizer sweeps the top layer of containers from a pallet load on to a wide discharge conveyor. In this example the pallet remains stationary during the operation and each layer is swept on to an intermediate transfer plate. In another configuration the pallet load is raised progressively thus eliminating the transfer plate .
Above - Operation of a typical sweep depalletizer

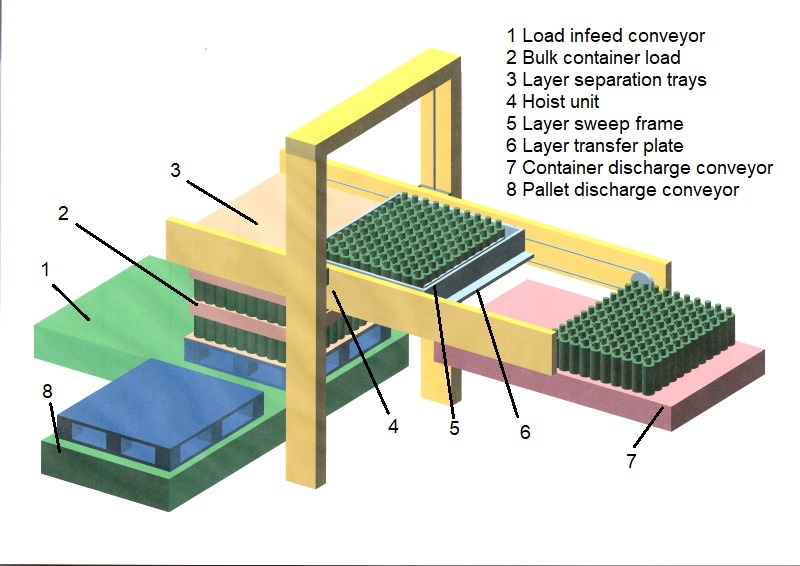

Below - Working parts of a typical sweep depalletizer
