Bottom loading case packing machines are used where it is more convenient to load products into a packing case from below. This example shows the normal arrangement combining case erecting, loading and sealing in one integrated machine. Side loading case packers share a similar arrangement with products loaded horizontally into an open top case instead of from below.

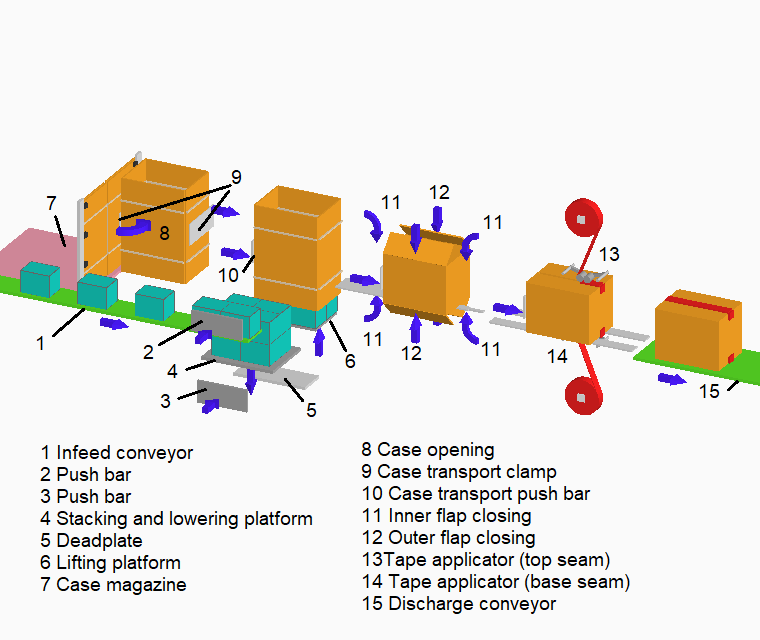

Above - Operation of a typical bottom loading case packer
Below - Working parts of a typical bottom loading case packer
